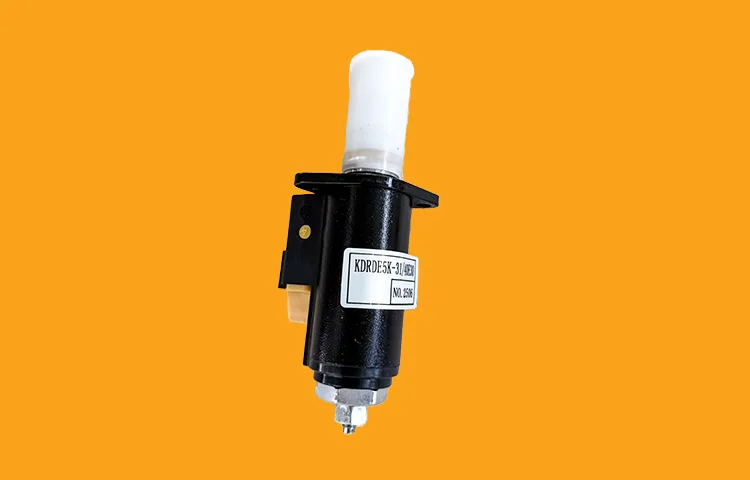

Part Name: Solenoid Valve 1119916
Part Number: 1119916
Basic Info.
| Part no. | 1119916 | Material | Steel |
| Type | Solenoid Valve | Part Type | Engineering machinery parts |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Date First Listed：2025/11/25
- Manufacturer：Diron Parts
Product Description
- Part Type：Solenoid Valve
- escription: Replacement Part Solenoid Valve 1119916 for Caterpillar, New
The 111-9916 is a premium-quality aftermarket 24-volt hydraulic solenoid valve (cartridge style) manufactured as a direct, 100% drop-in replacement for the genuine Caterpillar® part number 1119916 (111-9916). This robust, normally-closed solenoid is widely used in the hydraulic pilot control system to direct or block pilot oil flow, controlling main implement valves, swing brake release, travel speed selection, and other critical functions.
Key Features & Benefits
- Heavy-duty 24 VDC coil with DIN 43650 connector (Deutsch DT04-2P optional)
- Hardened and precision-ground spool and body for leak-free sealing and long life
- Zinc-nickel plated body for superior corrosion resistance
- 100% electrically and hydraulically tested before shipment
- Same mounting dimensions, thread (M20 × 1.5 nose), and flow/orifice specs as OEM
- Operating pressure up to 350 bar (5000 psi) and high flow capacity
- Fast response time (< 40 ms energize / < 25 ms de-energize)
Common Applications (Caterpillar® Compatibility)
- Hydraulic Excavators (most common): – 311C, 312C, 315C, 318C, 319D, 320C, 321C, 322C, 325C, 330C – 320D, 321D, 323D, 324D, 325D, 330D, 345C (pre-HEUI models)
- Typical functions: – Swing brake release – Two-speed travel solenoid – Implement pilot shut-off – Power shift pressure control (some models)
Technical Specifications
- Part Number: 111-9916 (aftermarket direct replacement)
- Voltage: 24 VDC (nominal)
- Current Draw: ~0.85 A at 24 V
- Coil Resistance: ~28.5 Ω at 20 °C
- Connector: DIN 43650 or Deutsch DT04-2P
- Max Pressure: 350 bar (5000 psi)
- Flow Rating: 30–40 L/min (depending on circuit)
- Thread: M20 × 1.5 (nose seal)
- Weight: ~0.65 kg
- Cross References: Often replaces or used alongside 121-4036, 139-8861, 247-5232
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
