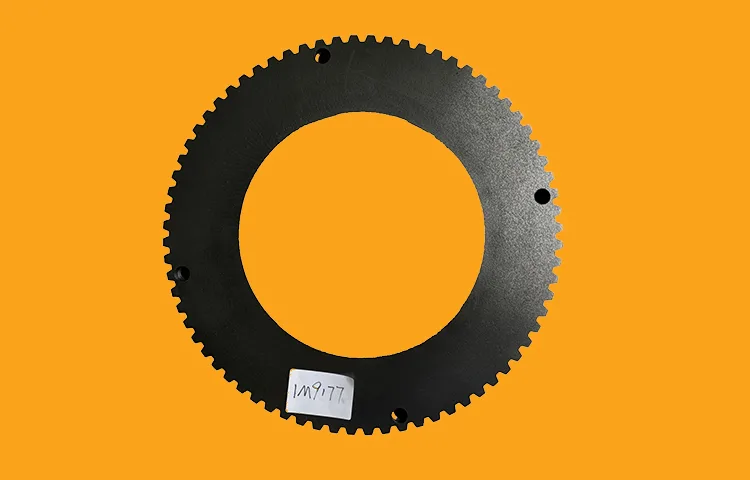

Part Name: Plate-Clutch Pressure 1M9177
Part Number: 1M9177
Basic Info.
| Parts no. | 1M9177 | Material | Iron |
| Type | Plate-Clutch Pressure | Inside Diameter (in) | 96.151 |
| Outside Diameter (in) | 8.00 | Thickness (in) | 0.1098 |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Item Model：Plate-Clutch Pressure 1M9177
- Date First Listed：2026/01/06
- Manufacturer：Diron Parts
Product Description
- Part Number：1M9177
- Part Type：Plate-Clutch Pressure
The 1M-9177 is a heavy-duty aftermarket clutch pressure plate designed for classic Caterpillar® track-type tractors and wheel loaders equipped with direct-drive power-shift transmissions. Manufactured from high-strength ductile iron with precision-machined contact surfaces, this plate delivers reliable clutch engagement, smooth power transfer, and extended service life in demanding dozing, loading, and earthmoving operations.
Key Features & Benefits
- Cast from high-grade ductile iron for superior strength and thermal stability
- Precision-ground pressure surface for uniform clutch disc contact and consistent release
- Reinforced drive lugs and diaphragm spring mounting for high-torque handling
- Phosphate-coated for corrosion resistance and improved break-in performance
- Balanced to strict tolerances to minimize vibration
- Engineered to withstand repeated high-load clutch cycles without warping or cracking
Common Applications (Caterpillar® Compatibility)
- Track-Type Tractors: D6C, D6D, D7F, D7G
- Wheel Loaders: 966C, 966D, 980B, 980C
- Transmissions: Direct-drive power-shift groups (typically 3-speed forward/reverse)
- Position: Main clutch pressure plate in transmission clutch packs
Technical Specifications
- Part Number Reference: 1M-9177
- Material: Ductile iron casting
- Outside Diameter: ≈ 355 mm (14 in)
- Spline Count: Matches factory drive configuration
- Weight: ≈ 22 kg (48 lb)
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
