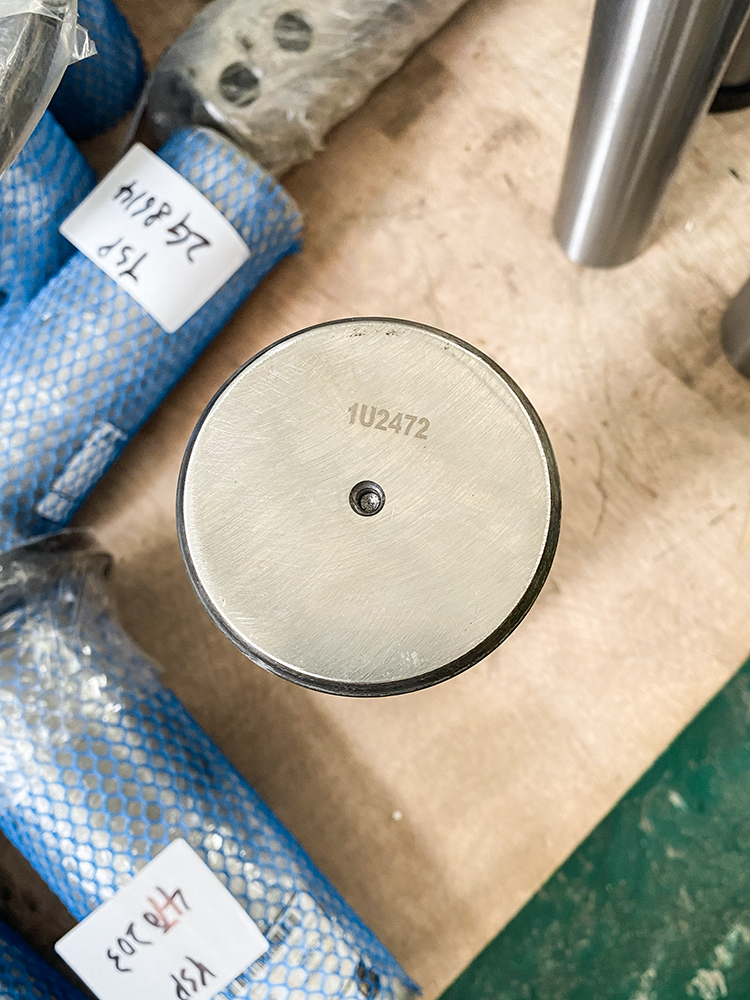

Part Name: Pin 1U2472
Part Number: 1U2472
Basic Info.
| Parts no. | 1U2472 | Material | Steel |
| Type | Pin | Parts Type | Engineering machinery parts |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Date First Listed：2025/12/22
- Manufacturer：Diron Parts
Product Description
- Parts Type: Pin
- Escription: Replacement Parts Pin 1U2472 Suitable for Caterpillar, New

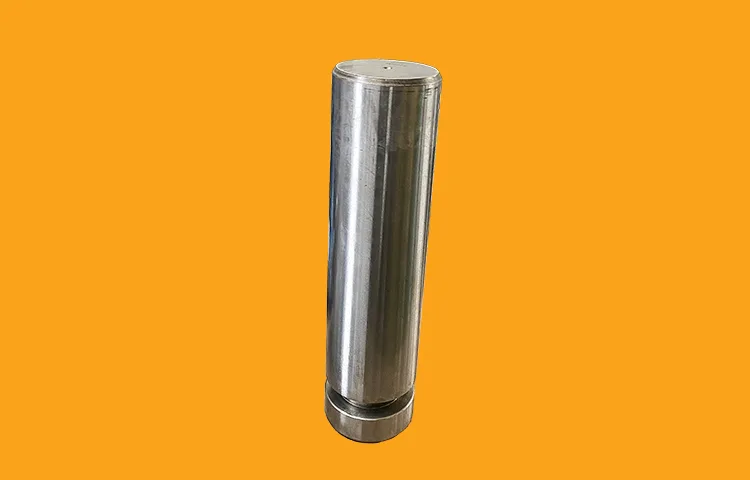

The 1U-2472 is a high-strength aftermarket bucket-to-stick pivot pin engineered for large Caterpillar® hydraulic excavators in the 70–100 ton class. Forged from premium 40Cr alloy steel and deep induction-hardened on all bearing surfaces, this pin withstands massive digging forces, shock loads, and continuous articulation in severe mining, quarrying, and mass-excavation operations.
Key Features & Benefits
- Forged 40Cr alloy steel with case hardness > HRC 55 (depth 12–15 mm)
- Optional thick hard-chrome plating for maximum wear and corrosion resistance
- Precision-ground diameters to ±0.02 mm tolerance for perfect bushing contact
- Spiral grease grooves + cross-drilled lubrication channels for easy maintenance
- Exceptional shear and bending strength – proven under extreme breakout forces
- Shot-blasted and anti-corrosion coated for long-term durability
Common Applications (Caterpillar® Compatibility)
- Hydraulic Excavators – bucket to stick (dipper arm) main pivot: – 375, 375L – 385B, 385C, 385C L – 390D, 390F (some configurations)
- One of the highest-stress pins in the front linkage of these heavy-duty machines
- Frequently replaced during major linkage rebuilds in high-production mining fleets
Technical Specifications
- Part Number Reference: 1U-2472
- Material: Forged & heat-treated alloy steel
- Outside Diameter: 129.98 mm (5.118 in)
- Overall Length: ≈ 580–600 mm (varies slightly by model)
- Weight: ≈ 110–120 kg (243–265 lb)
- Quantity per machine: 1
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
