Part Name: 311-1298 Sleeve Bearing Cartridge (Bogie Pin)
Part Number: 311-1298
Basic Info.
Product Details
- Date First Listed：2025/07/19
- Manufacturer：Diron Parts
Product Description
- Part Type：Sleeve Bearing Cartridge (Bogie Pin)
- Description: Replacement Parts 311-1298 Sleeve Bearing Cartridge (Bogie Pin) for Caterpillar, New

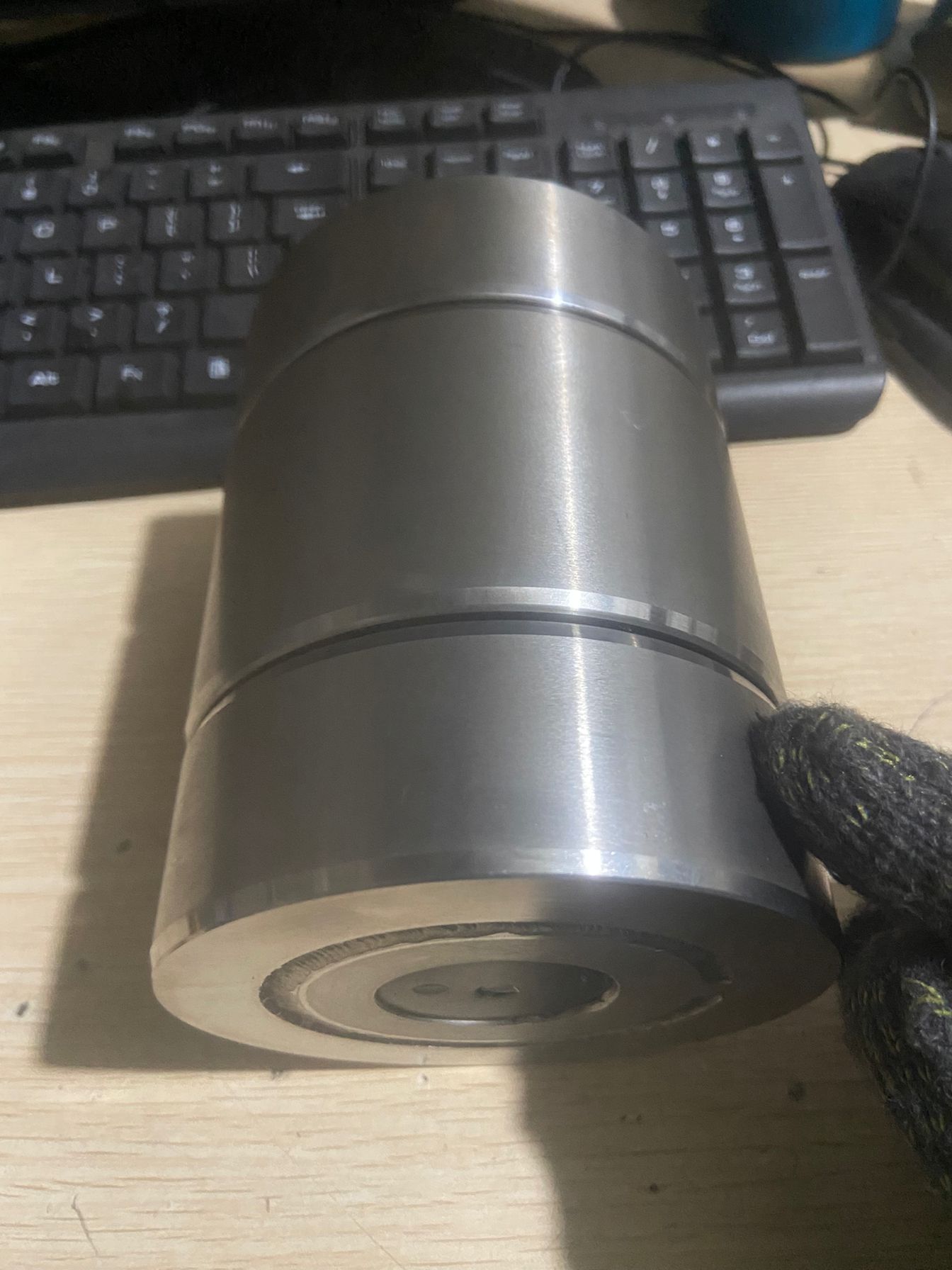

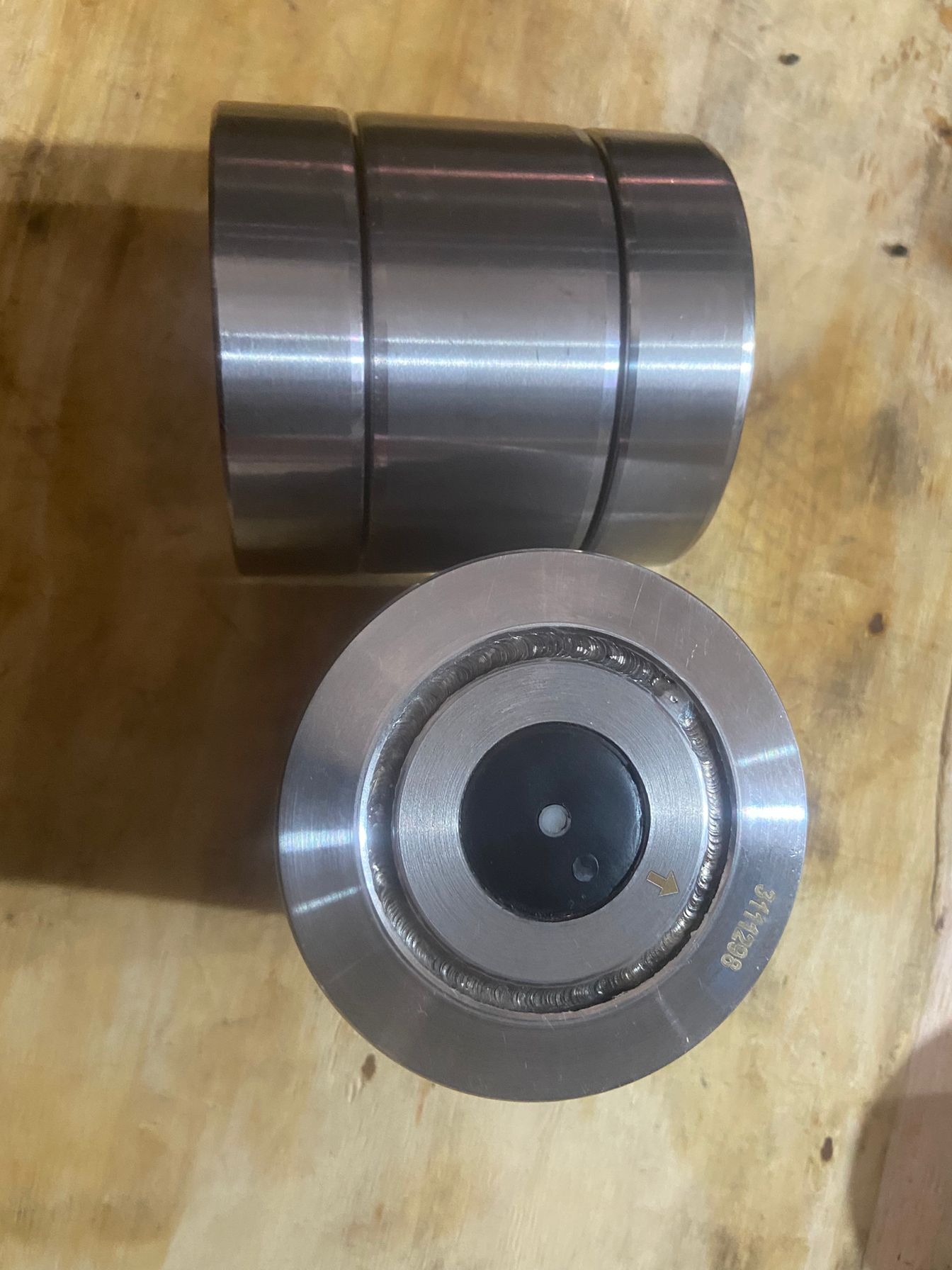

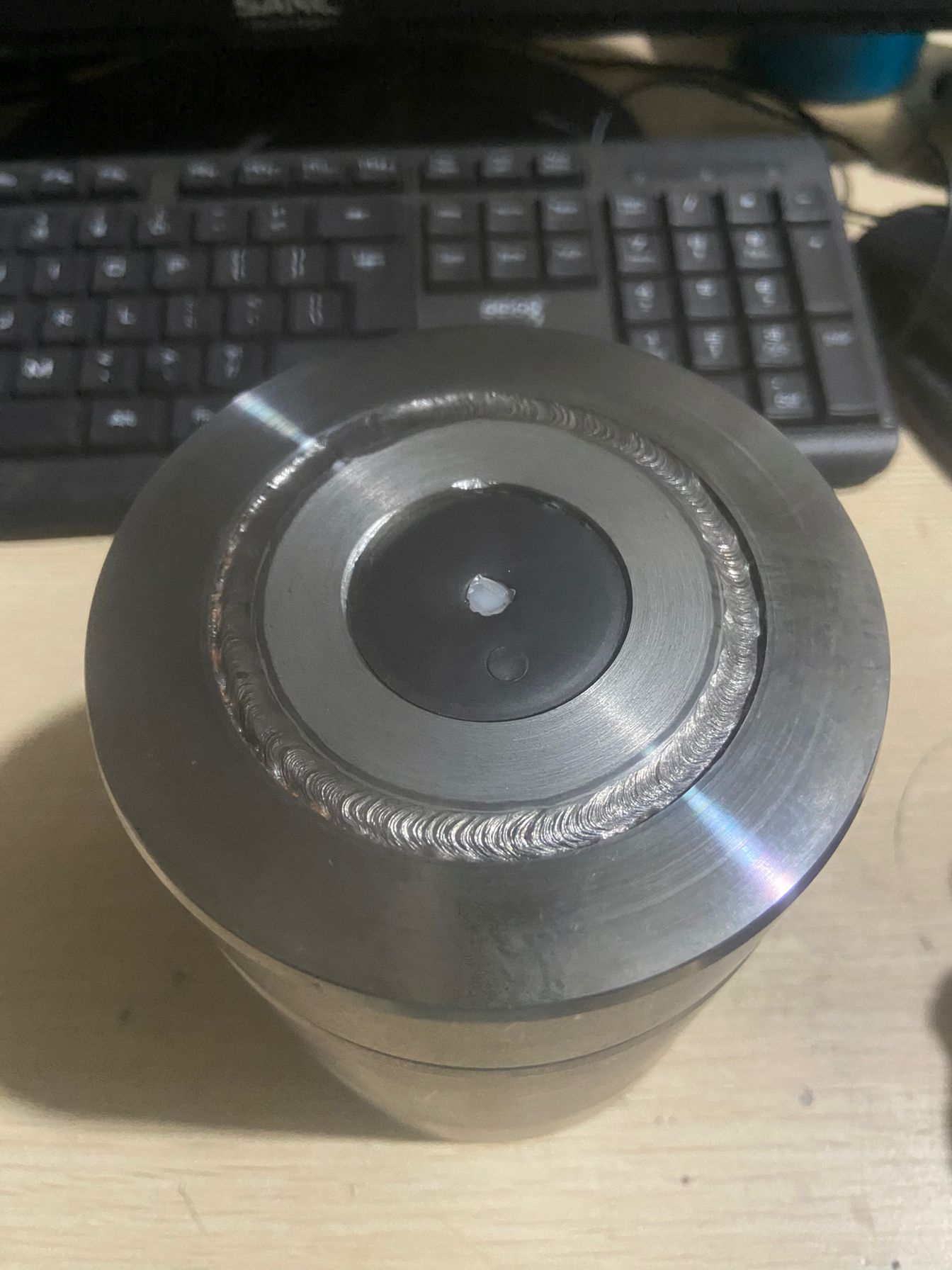

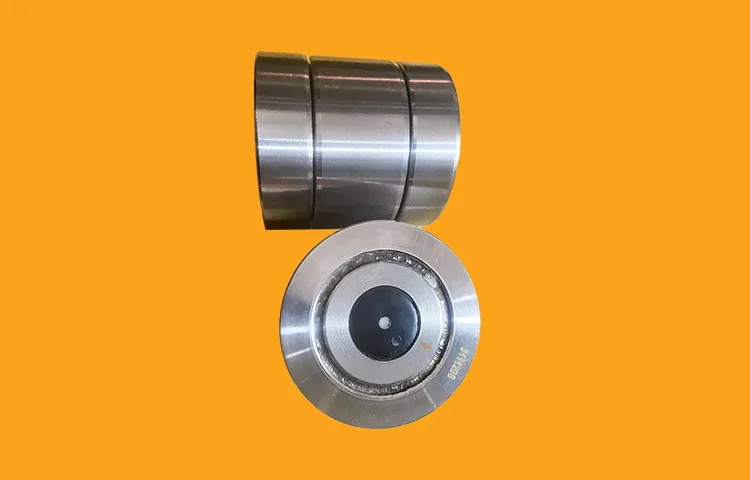

The Caterpillar 311-1298 Sleeve Bearing Cartridge (also referenced as 3111298), commonly referred to as a Bogie Pin Cartridge, is a critical component in the undercarriage system of specific Caterpillar track-type tractors and pipelayers. It serves as a bearing assembly for the bogie pin, supporting the bogie suspension system to ensure smooth track movement, absorb shocks, and maintain track alignment under heavy loads in demanding applications such as construction, mining, and pipelaying. Below is a detailed overview of its specifications, compatibility, and functional role based on available information.
Specifications
- Part Number: 311-1298 (3111298)
- Component Type: Sleeve Bearing Cartridge (Bogie Pin)
- Material: High-strength steel or alloy, typically heat-treated with surface hardening (e.g., HRC 58-62) to resist wear, fatigue, and deformation in abrasive environments.
- Dimensions: Specific dimensions (e.g., inner diameter, outer diameter, length) are not universally provided in available sources but are precision-engineered for exact fitment in compatible Caterpillar undercarriage systems.
- Weight: Approximately 20–30 lbs (9–13.6 kg), though exact weight may vary based on configuration.
- Design Features:
- Cylindrical sleeve bearing cartridge designed to encase the bogie pin, reducing friction and supporting rotational movement.
- Robust construction to withstand high loads, vibrations, and abrasive conditions.
- May include seals or lubrication channels to minimize wear and ensure smooth operation.
- Interchange Part Numbers: No specific interchange numbers were identified in available sources, but compatibility with related components should be verified.
Compatibility
The 311-1298 Sleeve Bearing Cartridge is compatible with the following Caterpillar equipment, primarily used in the bogie suspension system of the undercarriage:
- Track-Type Tractors: D8T, D9T, D10T, D10T2, D11T
- Pipelayers: PL83, PL87
- Specific Configurations:
- Part of the track roller frame and bogie assembly, such as the 332-8560 Bogie GP or 374-2469 Undercarriage Arrangement for D8T and similar models.
- Used in heavy-duty undercarriage systems designed for elevated sprocket track-type tractors.
Functional Role
Performance: The cartridge’s robust design ensures reliable track movement, minimizes wear on bogie pins and rollers, and contributes to overall machine stability and efficiency in challenging environments.
Purpose: The sleeve bearing cartridge supports the bogie pin within the undercarriage’s bogie suspension system, enabling smooth pivoting and shock absorption. It reduces friction between moving parts, maintains track alignment, and enhances the durability of the undercarriage under high loads and rough terrain.
Applications: Used in heavy-duty operations such as dozing, ripping, and pipelaying, where the undercarriage is subjected to significant stress, vibrations, and abrasive conditions.
Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
