Part Name: BLOWER MOTOR 3246125
Part Number: 3246125
Basic Info.
Product Details
- Item Model：3246125
- Date First Listed：2025/08/04
- Manufacturer：Diron Parts
Product Description
- Part Number: 3246125
- Part Type：BLOWER MOTOR
- Description: Caterpillar (CAT)

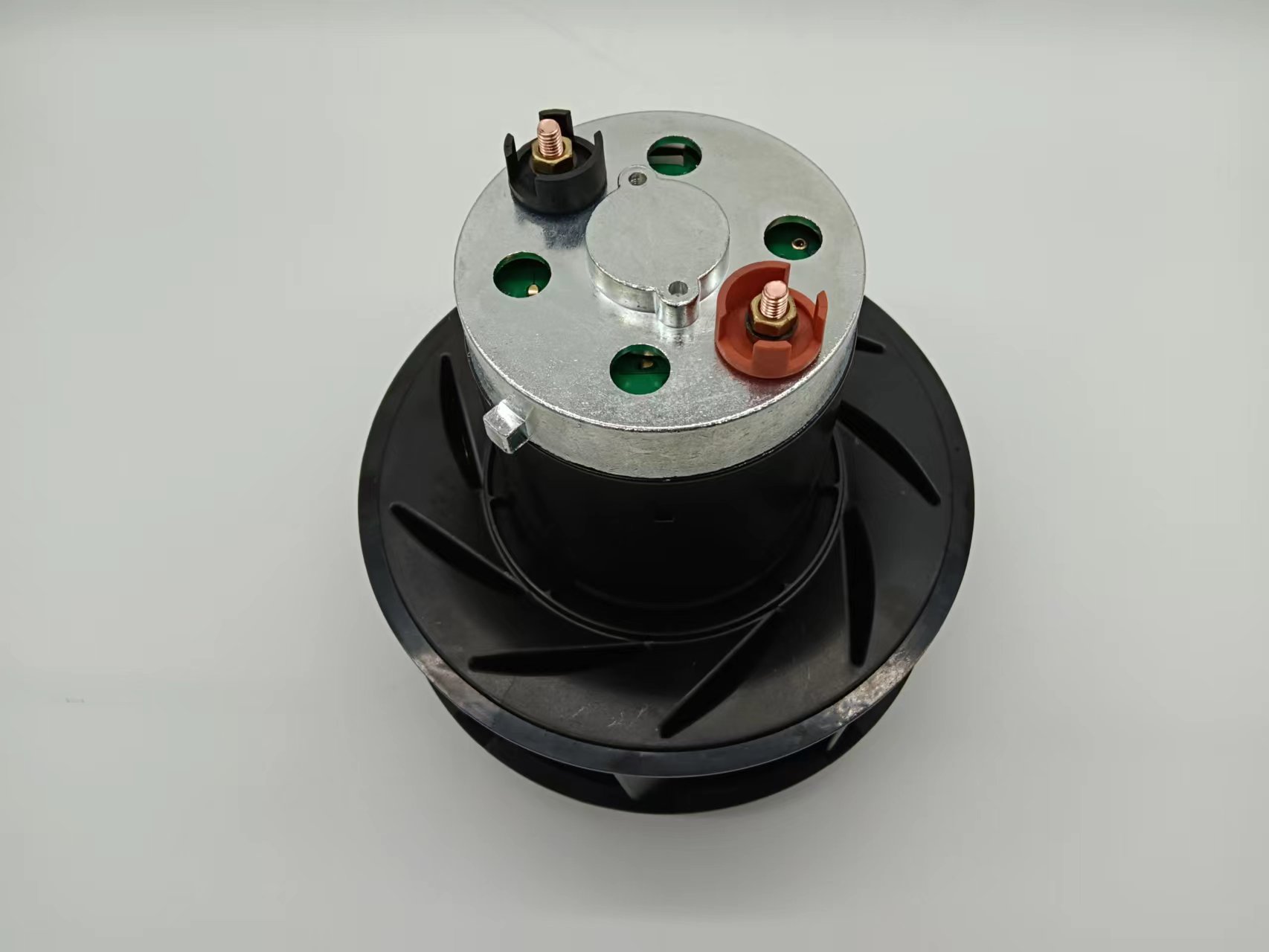

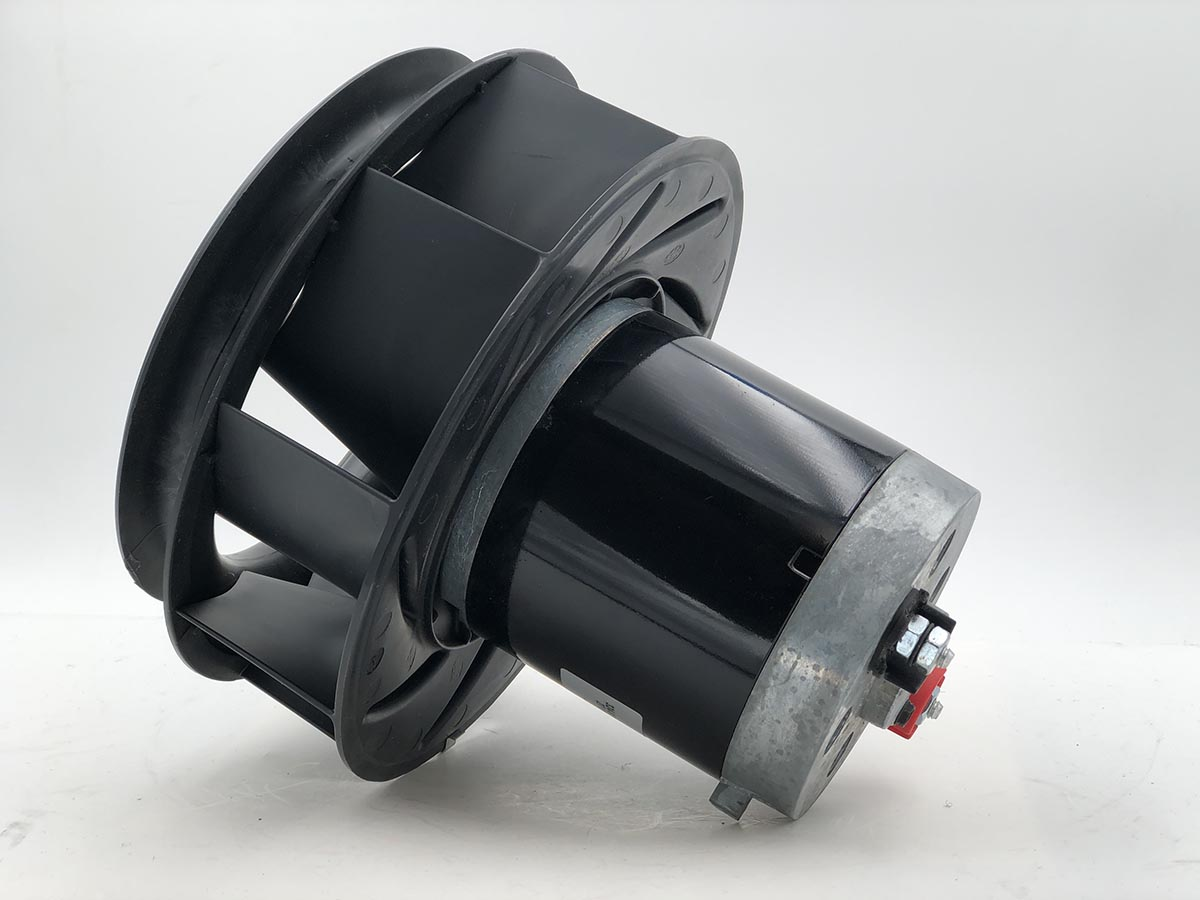

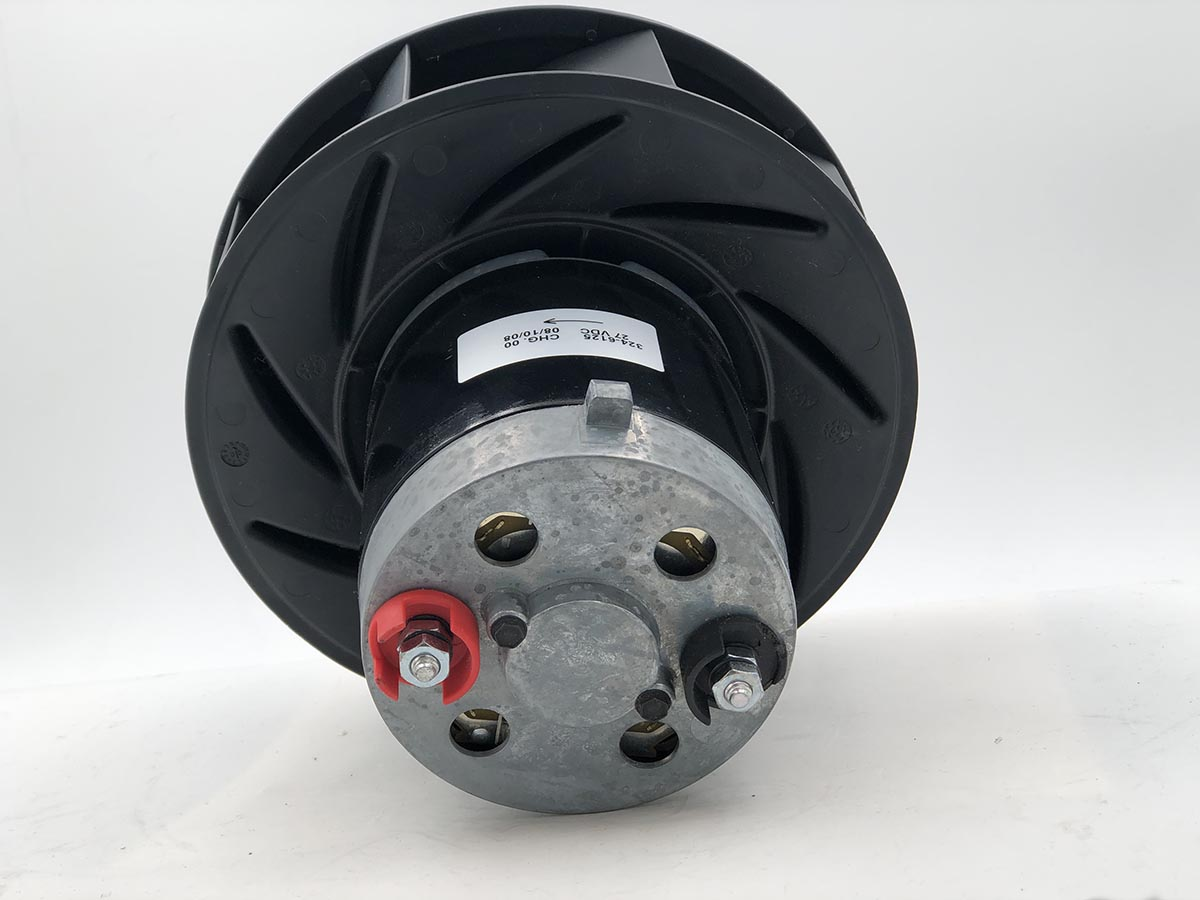

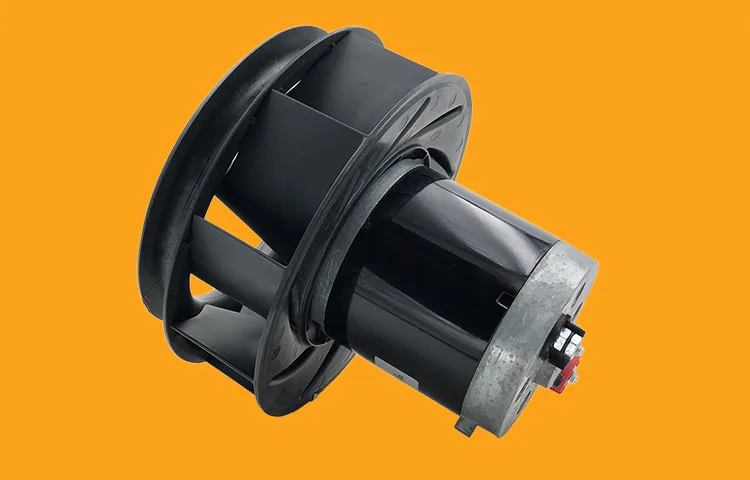

BLOWER MOTOR 3246125
The 3246125 Blower Motor Assembly (also referred to as Fan & Motor Assembly) is a replacement part designed for use in the heating, ventilation, and air conditioning (HVAC) systems of various Caterpillar equipment, ensuring proper cabin air circulation for operator comfort.
Compatibility
The 3246125 Blower Motor Assembly is compatible with the following Caterpillar equipment:
- Motor Graders:
- 120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD
- 140M, 140M 2, 140M 3, 140M 3 AWD
- 14M
- 160M, 160M 2, 160M 3, 160M 3 AWD
- 16M, 24M
- Off-Highway Trucks:
- 773F, 773G, 773G LRC, 773G OEM
- 775F, 775G, 775G LRC, 775G OEM
- 777F, 777G
- 793F, 793F AC, 793F CMD, 793F OEM, 793F XQ
- 795F AC, 795F XQ
- 797F
- Wheel Dozers:
- 844K, 854K
- Wheel Loaders:
- 990K, 992K, 993K, 994H
- Wheel Tractors:
- 621H, 623H, 627H
- Wheel Tractor-Scrapers:
- 621K, 623K, 623K LRC, 627K, 627K LRC
- Other Applications: May be used in HVAC systems across additional Caterpillar models with similar cab configurations.
Specifications
- Part Number: 3246125 (interchangeable with 324-6125, CA3246125, 150-3351, 123641, 321-3374, 385-7511, 466-7341, PR46020RX)
- Type: Blower Motor Assembly (Fan & Motor Group)
- Function: Drives air circulation within the HVAC system to provide heating, cooling, or ventilation in the operator’s cab, ensuring comfort in demanding environments.
- Material: Constructed from durable materials such as ABS plastic and metal (e.g., steel or aluminum for the motor housing), designed to withstand vibration, dust, and harsh conditions.
- Specifications:
- Voltage: 24V DC
- Overall Length: Approximately 210 mm (8.27 inches)
- Outer Diameter: Approximately 200 mm (7.87 inches)
- Speed: 4170 RPM
- Shaft Type: Single shaft with blower wheel
- Shaft Diameter: 5/16 inch
- Rotation: Counterclockwise (CCW)
- Mount Type: Strap or stud mount (2 5/16-inch stud span)
- Number of Wires: 2-wire harness
- Weight: Approximately 5.6 lbs (2.54 kg), based on similar blower motors (e.g., 3161927).
NOTE:To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
