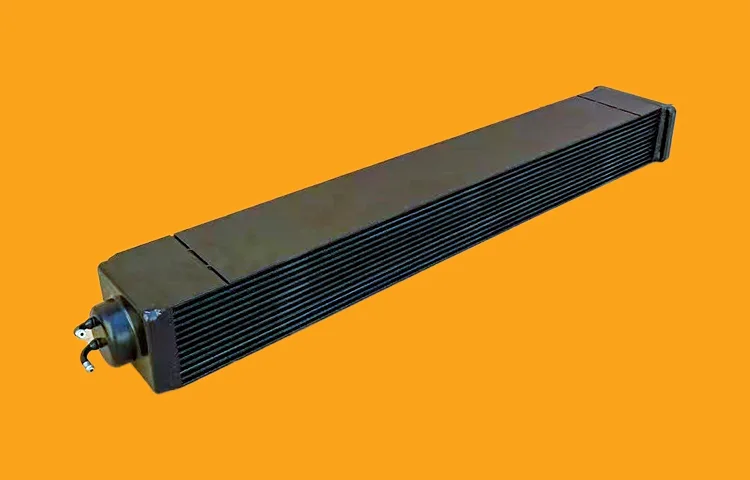

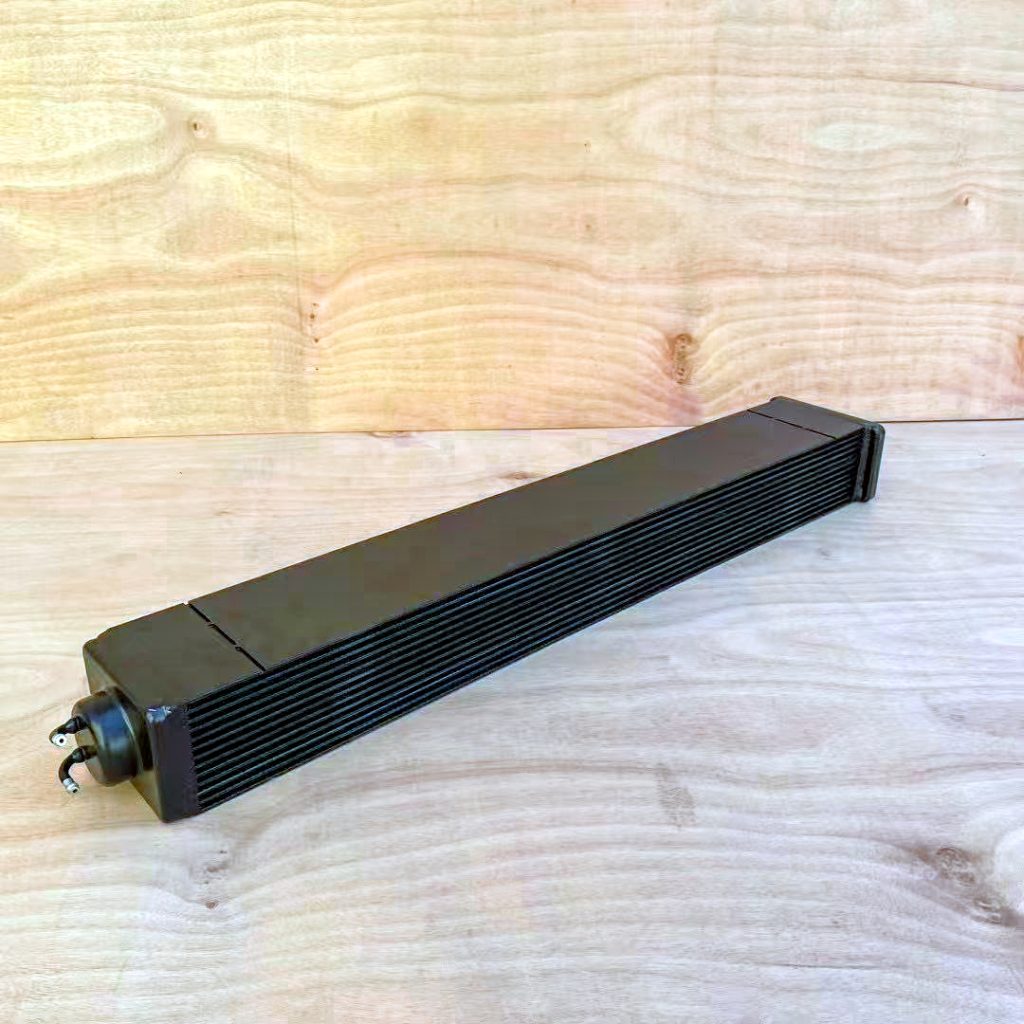

Part Name: Steel Radiator Core 109-3622
Part Number: 109-3622
Basic Info.
| Part no. | 109-3622 | Material | Steel |
| Type | Bottom Circle Wear | Weight | 50–60 lbs (22.7–27.2 kg) |
| Model | Caterpillar | Transport Package | Wooden Box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Item Model：109-3622
- Date First Listed：2025/08/17
- Manufacturer：Diron Parts
Product Description
- Part Number：109-3622
- Part Type：Bottom Circle Wear
- Compatible Equipment：Replacement Part Steel Radiator Core 109-3622 for Caterpillar
The Steel Radiator Core 109-3622 is a replacement part designed for aftermarket use in Caterpillar machinery. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that this product is an OEM part. Below is a detailed overview of the part:
Specifications:
- Part Number: 109-3622 (also referenced as 1093622 or CA1093622)
- Part Type: Radiator Core
- Material: Steel, designed for durability and efficient heat dissipation
- Dimensions:
- Core Length: 40-3/4 inches (103.5 cm)
- Overall Length: 42-3/8 inches (107.6 cm)
- Height: Approximately 5.5 inches (14 cm)
- Weight: Approximately 50–60 lbs (22.7–27.2 kg), depending on the specific configuration
- Core Type: "R" Series Core
Compatible Equipment Models:
This replacement radiator core is compatible with various Caterpillar machinery, including but not limited to:
- Track-Type Tractors: D6R, D6R II, D7R, D7R II, D8R, D8R II, D8N, D8GC, D10N, D10R
- Wheel Loaders: 966G, 966G II, 972G, 972G II
- Wheel Tractors/Scrapers: 621G, 623G, 627G, 657, 657B
- Pipelayers: 572R, 572R II, 583R, 587R
- Engines: Compatible with engine models such as 3176C, 3196, 3306, 3406, 3406C, 3406E, C-12, C-9, C27
Applications:
The Steel Radiator Core 109-3622 is a critical component of the cooling system, designed to draw out excess heat to cool engines in Caterpillar machinery. It is engineered for reliable performance in demanding aftermarket applications, ensuring efficient heat transfer and durability in heavy-duty environments such as construction, mining, and grading operations.
Important Note:
We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
