Part Name: 1P7763 Guard A-Fan
Part Number: 1P7763
Basic Info.
| Parts no. | 1P7763 | Material | steel |
| Type | Guard A-Fan | Manufacturer | Aftermarket, replacement and not original CAT |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
*We are not an authorized dealer for CATERPILLAR, and we don't represent it. Our catalog contains replacement parts manufactured with high quality standards but not Original Equipment from the Manufacturer. We use original product codes, photos or schemas only for reference purposes. The image of the product is provided as a reference and may differ in appearance from the ordered product. Use the original part number to find the parts or replacements you need.
Product Details
- Item Model：1P7763
- Date First Listed：2026/03/06
- Manufacturer：Diron Parts
Product Description
- Part Number：1P7763
- Part Type: Guard A-Fan

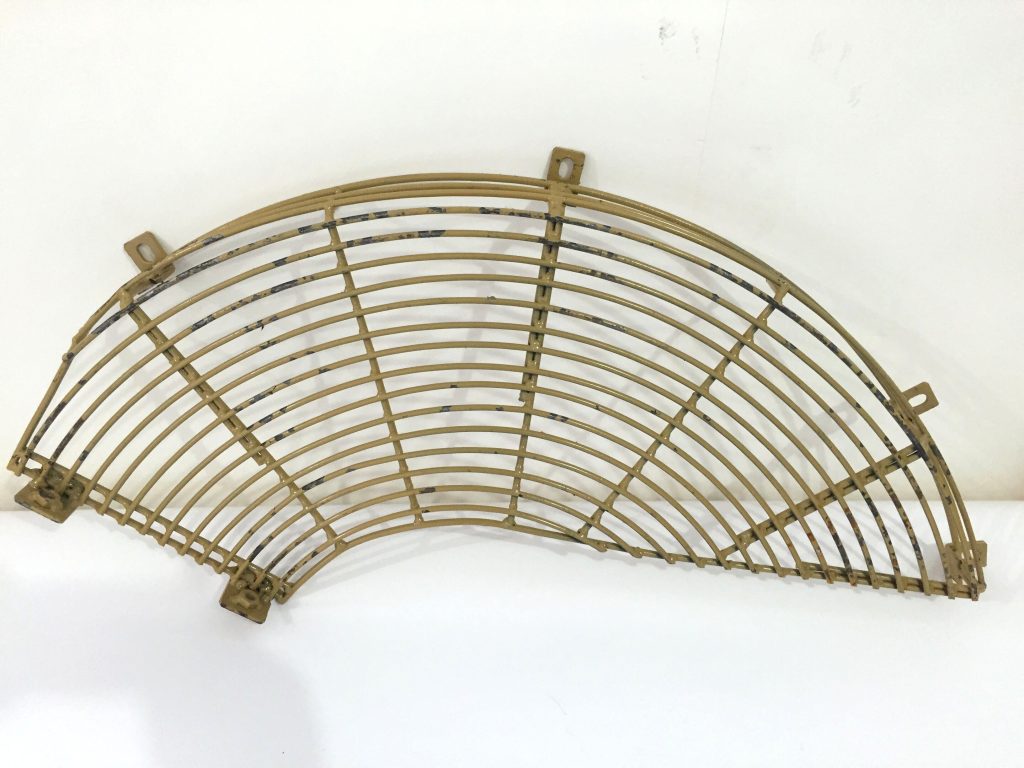

- Description:1P7763 Guard A-Fan suitable for Caterpillar
The 1P-7763 is a heavy-duty aftermarket fan guard assembly (A-Fan guard) designed to protect the engine cooling fan and surrounding components on Caterpillar® machines. This complete guard shields personnel from rotating fan blades while allowing unrestricted airflow to the radiator core, ensuring safe operation and efficient cooling in high-vibration, dusty, and debris-heavy construction and mining environments.
Key Features & Benefits
- Full-coverage design with strategic openings for maximum airflow and cooling efficiency
- Reinforced mounting points and brackets for secure, vibration-resistant installation
- Precision-formed edges and contours to match factory fit and clearance
- Easy access for fan and belt service without full disassembly
- 100 % inspected for dimensional accuracy, weld integrity, and paint coverage
- Proven durability in severe-duty applications with flying debris and impact
Common Applications (Caterpillar® Compatibility)
- Track-Type Tractors: – D6C, D6D, D7F, D7G, D8K
- Wheel Loaders: – 966C, 966D, 980B, 980C
- Off-Highway Trucks: – 769C, 773B (select configurations)
- Typical function: – Engine cooling fan shroud/guard assembly (rear of radiator core)
Technical Specifications
- Part Number Reference: 1P-7763
- Type: Fan guard assembly (A-Fan guard)
- Mounting: Direct bolt-on to radiator core frame
- Overall Dimensions: Matches factory specification
- Weight: ≈ 18–22 kg (40–48 lb)
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
