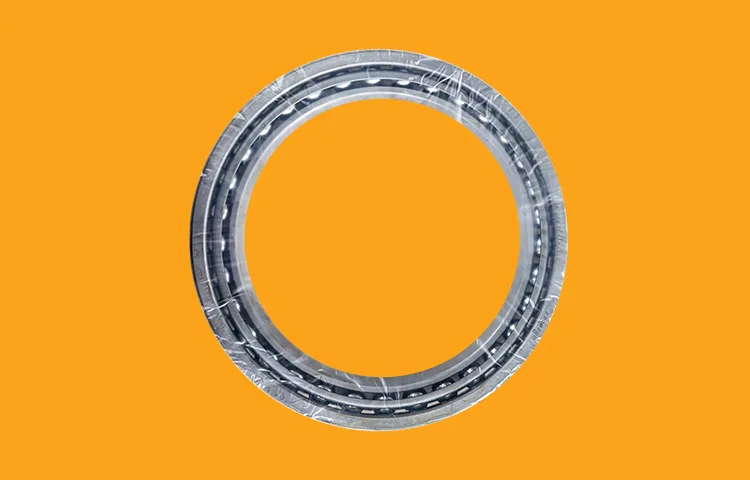

Part Name: Ball Bearing 2966220
Part Number: 2966220
Basic Info.
| Parts no. | 2966220 | Material | steel |
| Type | Ball Bearing | Parts Type | Engineering machinery parts |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Date First Listed：2025/12/08
- Manufacturer：Diron Parts
Product Description
- Part Type: Ball Bearing
- Description: Replacement Parts Ball Bearing 2966220 for Caterpillar, New
The 296-6220 is a premium-grade aftermarket deep-groove ball bearing engineered specifically for high-speed, high-load applications inside Caterpillar® torque converters, transmissions, and final drives. Manufactured from vacuum-degassed chrome steel (100Cr6) and heat-treated to exact OEM hardness, this bearing delivers exceptional fatigue life, quiet operation, and reliable performance even under severe shock loads and contaminated oil conditions.
Key Features & Benefits
- Vacuum-degassed 52100 / 100Cr6 bearing steel – superior cleanliness and fatigue resistance
- C3 internal clearance with advanced cage design for high-RPM stability
- Honed raceways and super-finished balls (Grade 10 or better) for reduced noise and vibration
- High-temperature synthetic grease packed and sealed with contact rubber shields (2RS type)
- 100 % dynamically noise-tested and dimensionally inspected
- Same load ratings and speed limits as the original equipment bearing
Common Applications (Caterpillar® Compatibility)
- Torque converters and planetary transmissions in: – Large Wheel Loaders: 988H, 988K, 990H, 990K, 992K, 993K, 994F/H/K – Mining Trucks: 785C/D, 789C/D, 793D/F – Track-Type Tractors: D10T, D11T
- Position: Frequently used as input shaft, planetary carrier, and output shaft support bearing
Technical Specifications
- Part Number Reference: 296-6220
- Type: Deep-groove ball bearing, double sealed (2RS)
- Bore Diameter (ID): 100 mm
- Outside Diameter (OD): 180 mm
- Width: 34 mm
- Dynamic Load Rating: ≈ 122 kN
- Static Load Rating: ≈ 93 kN
- Limiting Speed: 7500 RPM (greased)
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
