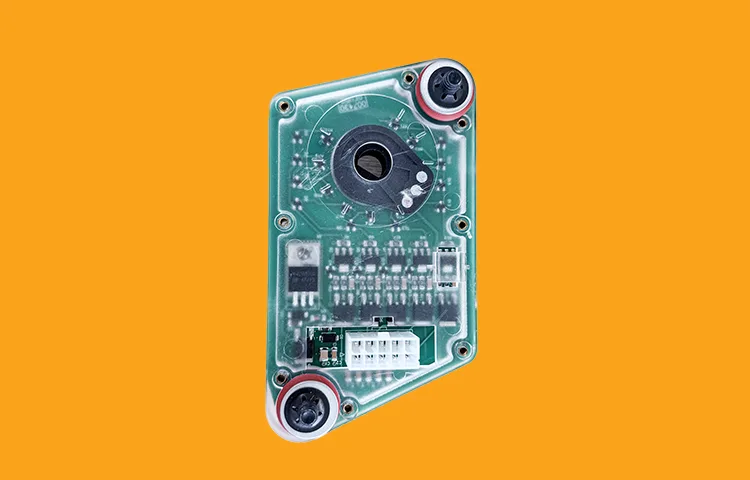

Part Name: Sensor GP-POSITION 3381488
Part Number: 3381488
Basic Info.
| Parts no. | 3381488 | Material | steel |
| Type | Sensor GP-POSITION | Weight | 0.48 kg |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Item Model：3381488
- Date First Listed：2025/12/09
- Manufacturer：DIRON
Product Description
- Part Number: 3381488
- Part Type：Sensor GP-POSITION 3381488
- Description: Caterpillar
The 338-1488 is a high-reliability aftermarket rotary position sensor designed for Caterpillar® medium-to-large hydraulic excavators and wheel loaders equipped with electro-hydraulic (EH) pilot controls. This non-contact hall-effect sensor precisely monitors joystick and pedal position, delivering smooth proportional control of boom, stick, bucket, swing, and travel functions.
Key Features & Benefits
- True non-contact hall-effect technology – > 30 million cycle life, zero wear
- Factory-matched 0.5–4.5 V ratiometric output curve (±0.5 % linearity)
- Fully sealed IP68 aluminum housing + Deutsch DT04-3P connector
- Wide operating temperature range –40 °C to +125 °C with temperature compensation
- Built-in reverse-polarity, over-voltage, and EMI/RFI protection
- Stainless-steel D-shaft and dual-sealed bearings for maximum durability
- Mounting pattern, spline, and electrical characteristics identical to OEM
Common Applications (Caterpillar® Compatibility)
- Hydraulic Excavators: – 320E, 323E, 324E, 326F, 329E, 329F, 330F – 335F, 336E, 336F, 349E, 349F, 352F
- Wheel Loaders: – 950K, 962K, 966K/M, 972K/M, 980K/M, 982M
- Primary use: Joystick base, foot pedal, and thumb-wheel proportional control sensors
Technical Specifications
- Part Number Reference: 338-1488
- Output Signal: 0.5–4.5 VDC ratiometric
- Supply Voltage: 8–32 VDC
- Rotation Angle: ±38° (76° total travel)
- Connector: Deutsch DT04-3P
- Protection Class: IP68
- Weight: ≈ 0.48 kg
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
