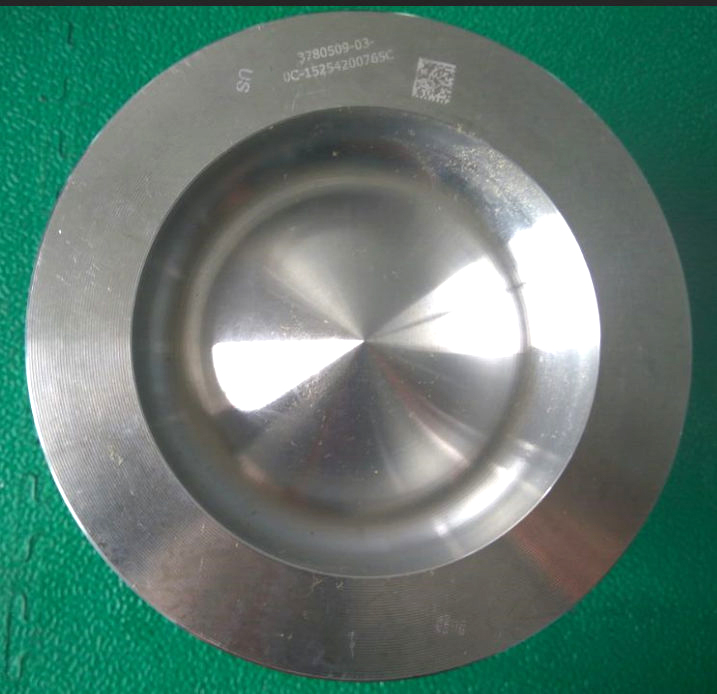

Part Name: Piston Body 3780509
Part Number: 3780509
Basic Info.
| art no. | 3780509 | Material | steel |
| Type | Piston Body | Part Type | Engineering machinery parts |
| Compatibility | Caterpillar 3406C | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Date First Listed：2025/05/30
- Manufacturer：Diron Parts
Product Description
- Part Type：Piston
- Description: Caterpillar 3406C
Product Introduction: Piston Body 3780509 for Caterpillar Equipment
Overview
The Piston Body 3780509 is a precision-engineered component designed for Caterpillar equipment, specifically used to transfer combustion energy to the connecting rod in the engine’s cylinder, ensuring efficient power delivery. This piston body is critical for maintaining engine performance in heavy-duty applications such as wheel loaders, motor graders, and dozers. Available as a new aftermarket or genuine OEM part, it provides a reliable and cost-effective solution for engine maintenance. The user’s query for 3780509, following requests for Caterpillar components (e.g., 4W7188 oil cooler, 504680 crankshaft), aligns with a focus on Caterpillar engine parts, particularly for 3406 series engines.
Key Features
- Material: Constructed from high-grade aluminum alloy, offering a balance of lightweight design, durability, and heat resistance to withstand extreme combustion pressures and temperatures. Features a robust skirt and crown design for enhanced strength.
- Design: Precision-machined to OEM specifications, featuring a standard-size piston body with a 14.5:1 compression ratio and 9-degree design, optimized for Caterpillar 3406 series engines. Includes grooves for piston rings and a bore for the wrist pin (pin not included). Supplied with retaining clips for secure installation.
- Compatibility: Compatible with Caterpillar equipment and engines, specifically:
- Engines: 3406, 3406B, 3406C.
- Equipment:
- Dimensions: Weight of approximately 6 lbs (2.7 kg). Specific bore and stroke align with the 3406 engine (5.4 in bore, 6.5 in stroke).
- Quality Assurance: Manufactured to meet or exceed OEM specifications, with magnaflux testing to ensure structural integrity. Produced in ISO 9001-certified facilities.
Benefits
- Enhanced Durability: Aluminum alloy construction ensures resistance to thermal stress and wear, extending service life in high-load applications like the 3406 engine in 980G wheel loaders.
- Reliable Performance: Precision design ensures optimal combustion efficiency, delivering approximately 300-400 hp for 3406 engines, enhancing machine performance.
- Ease of Installation: Direct-fit design with included clips ensures straightforward installation, minimizing downtime during engine rebuilds.
Applications
The Piston Body 3780509 is designed for use in Caterpillar equipment, specifically suited for:
- Wheel Loaders: 980C, 980F, 980G, for material handling and loading.
- Motor Graders: 16G, for road construction and grading.
- Track-Type Tractors: D8N, for earthmoving and dozing, complementing the user’s D6E focus (e.g., 504680).
- Industries: Construction, mining, and material handling, where 3406-powered equipment operates in high-load conditions.
Technical Specifications
Weight: 6 lbs (2.7 kg).
Part Number: 3780509 (cross-referenced as 378-0509, CA3780509, 8N1606, 9Y4004, 1W9372, 2900017, 20R1115, 20R1116, and others).
Unit of Measure: Each.
Condition: New aftermarket or OEM.
Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
