Part Name: Hood Tilt Power Actuator 4793060
Part Number: 4793060
Basic Info.
| Parts no. | 4793060 | Material | steel |
| Type | Hood Tilt Power Actuator | Parts Type | Engineering machinery parts |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Date First Listed：2025/12/09
- Manufacturer：Diron Parts
Product Description
- Part Type: Hood Tilt Power Actuator
- Description: Replacement Parts Hood Tilt Power Actuator 4793060 for Caterpillar, New

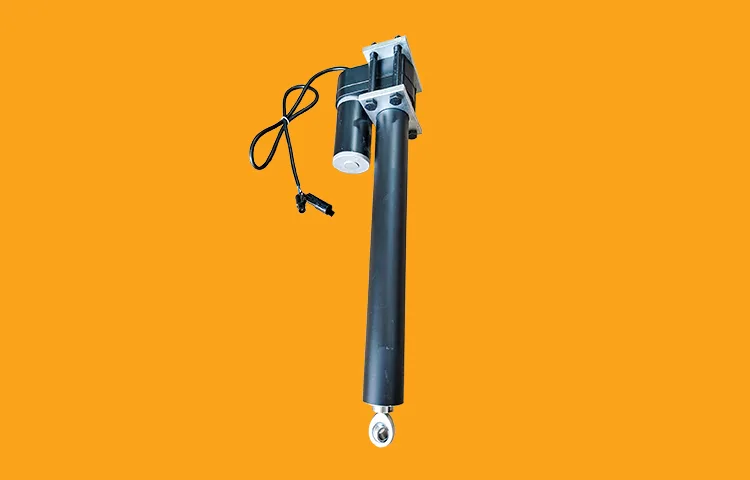

The 479-3060 is a heavy-duty aftermarket electric-linear hood tilt actuator engineered for Caterpillar® large mining trucks. This powerful 24 V unit safely raises and lowers the complete engine hood assembly, giving technicians fast, single-person access to the engine compartment while eliminating the risks and effort of manual hood lifting.
Key Features & Benefits
- Brand-new construction with high-torque 24 VDC motor and hardened steel planetary gearbox
- 8,000 N (1,800 lbf) push/pull force – easily handles the heaviest hoods even when loaded with mud or ice
- Built-in limit switches and thermal overload protection
- IP67 sealed aluminum housing + stainless-steel extension tube for extreme dust and wash-down resistance
- Maintenance-free Acme-thread drive – no grease points required
- Direct bolt-on mounting pattern and electrical connector (Deutsch DT04-4P) identical to factory unit
- Stroke length and speed calibrated to OEM specifications
Common Applications (Caterpillar® Compatibility)
- Large Mining Trucks: – 785D, 785G – 789D, 789G – 793D, 793F, 794 AC – 797F (some configurations)
- Position: Primary driver-side hood lift actuator (passenger-side mirror part available on request)
Technical Specifications
- Part Number Reference: 479-3060
- Voltage: 24 VDC
- Current Draw: 6 A nominal / 18 A max
- Stroke: ≈ 600 mm
- Push/Pull Force: 8,000 N
- Speed: 25 mm/sec (unloaded)
- Duty Cycle: 15 % (max 2 min ON / 10 min OFF)
- Operating Temperature: –40 °C to +85 °C
- Weight: ≈ 18 kg
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
